Chassis Features

• High-tensile steel frame with special attention given to a balance of rigidity and weight for optimum chassis performance and a comfortable ride.
• Independent double A-arm front suspension with 6.7 inches (170 mm) of wheel travel includes large diameter shock absorbers with 5-way spring preload adjustment.
• Fully independent, A-arm and I-beam rear suspension with long suspension travel of 7.7 inches (195mm) includes large diameter shock absorbers with 5-way spring preload adjustment and large diameter rear sway-bar.
• Large, 200mm diameter dual front disc brakes with single-piston calipers are designed for strong, reliable braking performance.
• Sealed, multi-plate rear brake system, with a clutch-type design, provides high durability, offers reduced unsprung weight and low maintenance.
• For superb traction and durability in any condition, specialized 25-inch tires are mounted on pressed-aluminum wheels which reduce unsprung weight.

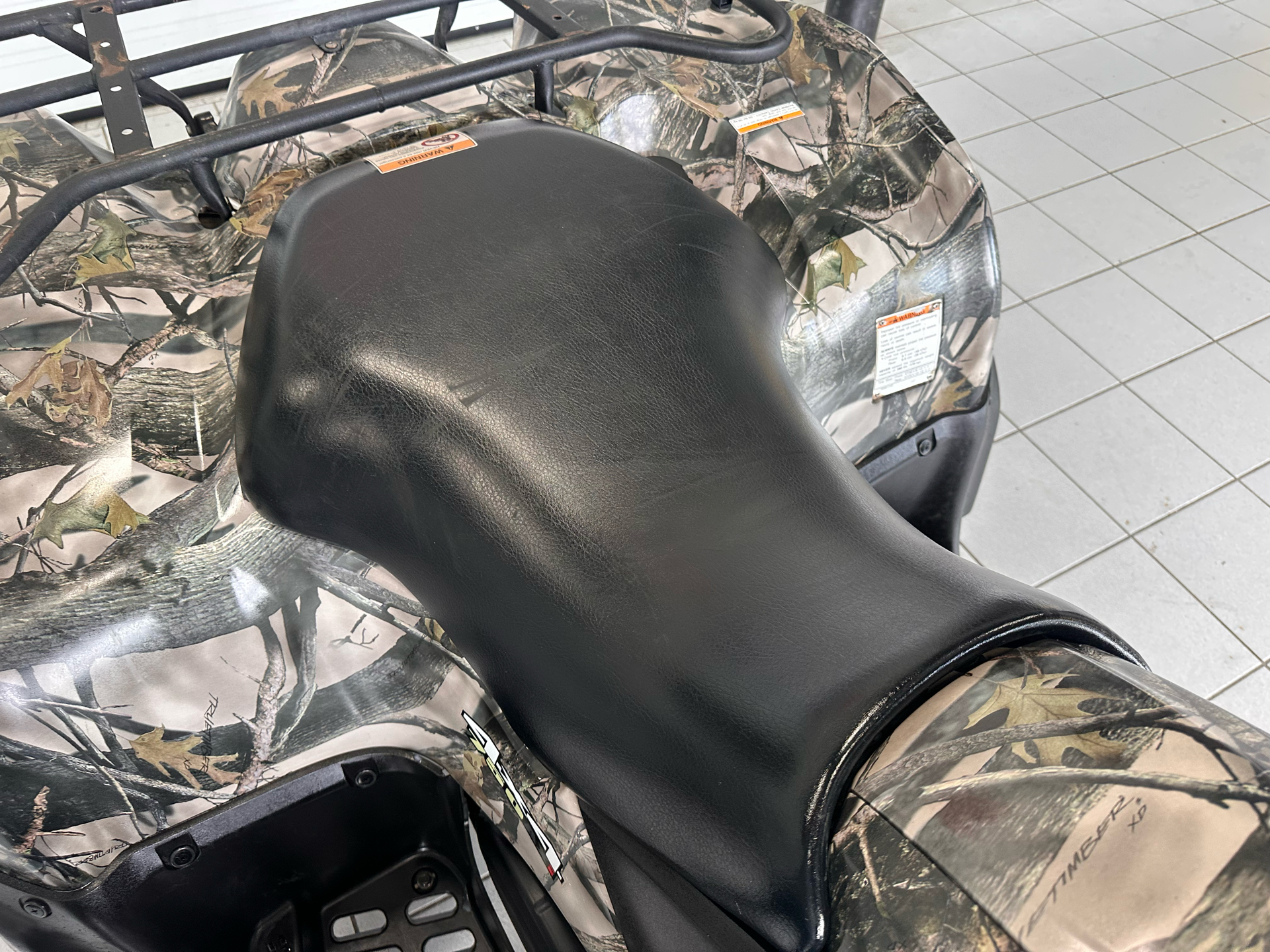

• Suzuki's innovative and exclusive T-shaped seat provides maximum rider mobility during sport riding and while tackling difficult terrain. It’s also plush for comfort during extended time in the saddle.
• A polyethylene skid plate provides front-to-rear under carriage protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.

Engine Features

• 722 cc liquid-cooled DOHC 4-valve fuel-injected engine tuned to deliver strong low-to-mid range torque as well as high-rpm power.
• A lightweight aluminum cylinder bore is electro-plated with Suzuki's own race proven SCEM (Suzuki Composite Electrochemical Material) for improved heat transfer and superior ring seal that results in excellent combustion chamber efficiency.
• Cylinder canted forward 48 degrees for lower center of gravity, reduced engine height and lower seat height, and is rubber mounted with two balancer shafts for smooth performance.
• Compact 4-valve cylinder head with large 36mm intake valves and straight intake ports for increased cylinder charging efficiency – includes lightweight magnesium valve cover
• Semi-gear driven valve system minimizes cam sprocket size allowing a short/narrow cylinder head design and reduced overall engine height.
• The rubber-mounted engine uses two balancer shafts to keep the powerful ride smooth.
• Suzuki fuel injection system provides excellent throttle response, fuel efficiency and quick engine starts.
• Ultra-efficient air filter has both paper (for superior filtration) and foam (easily cleaned and re-used) elements for better durability and easier maintenance.

Key Features

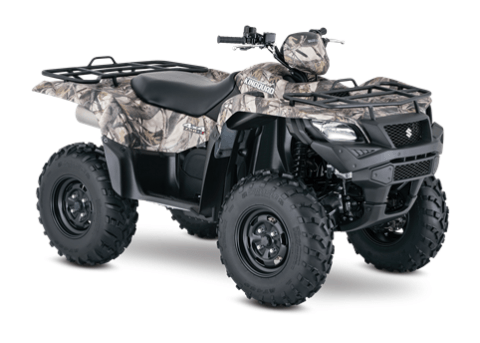

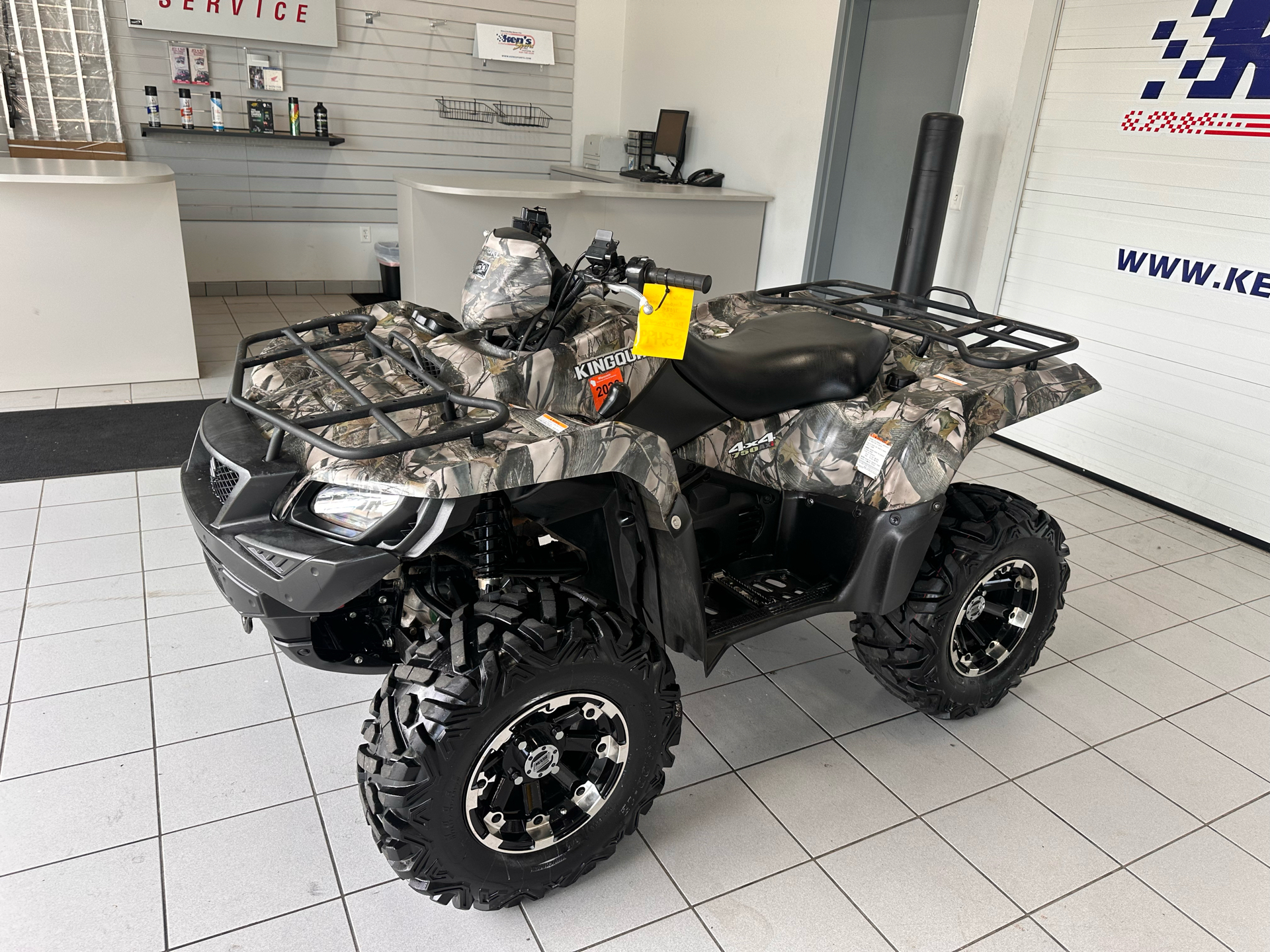

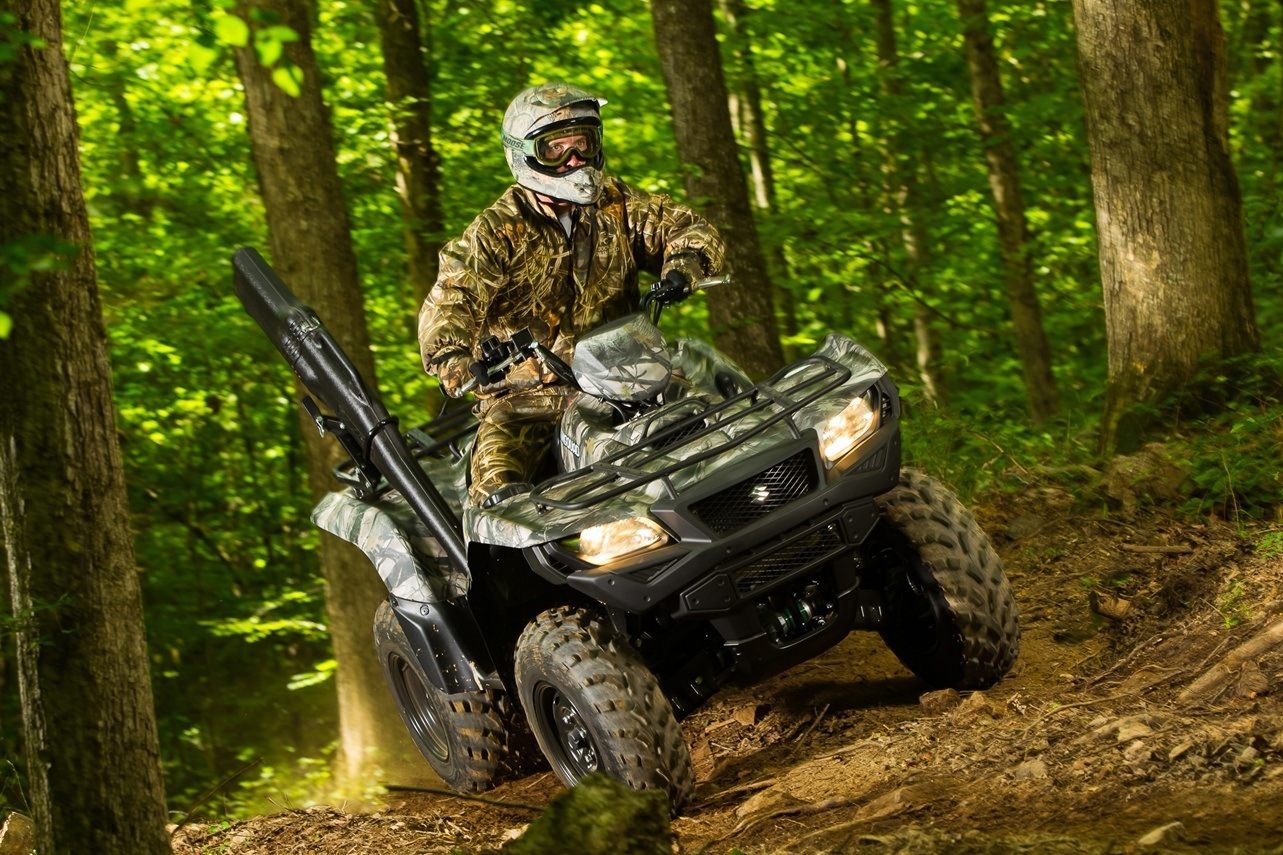

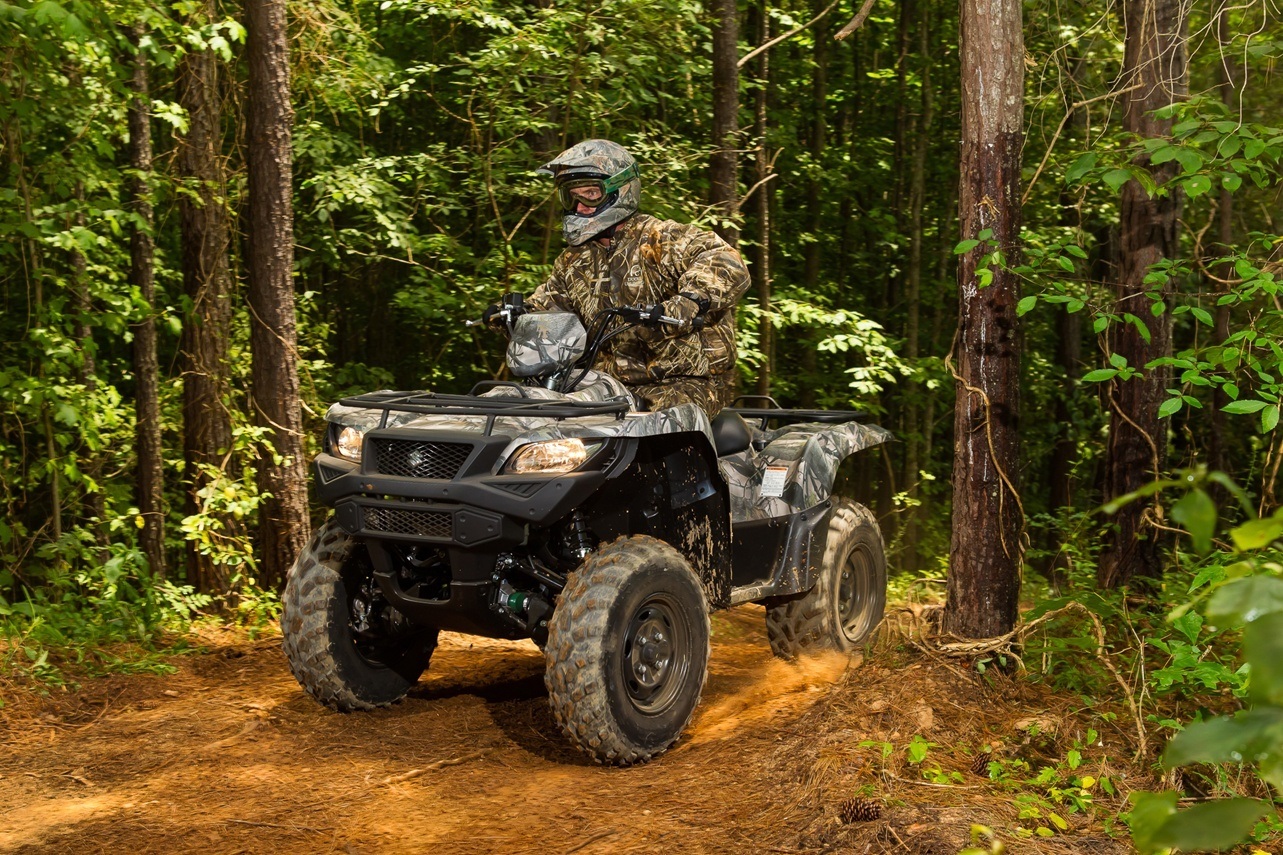

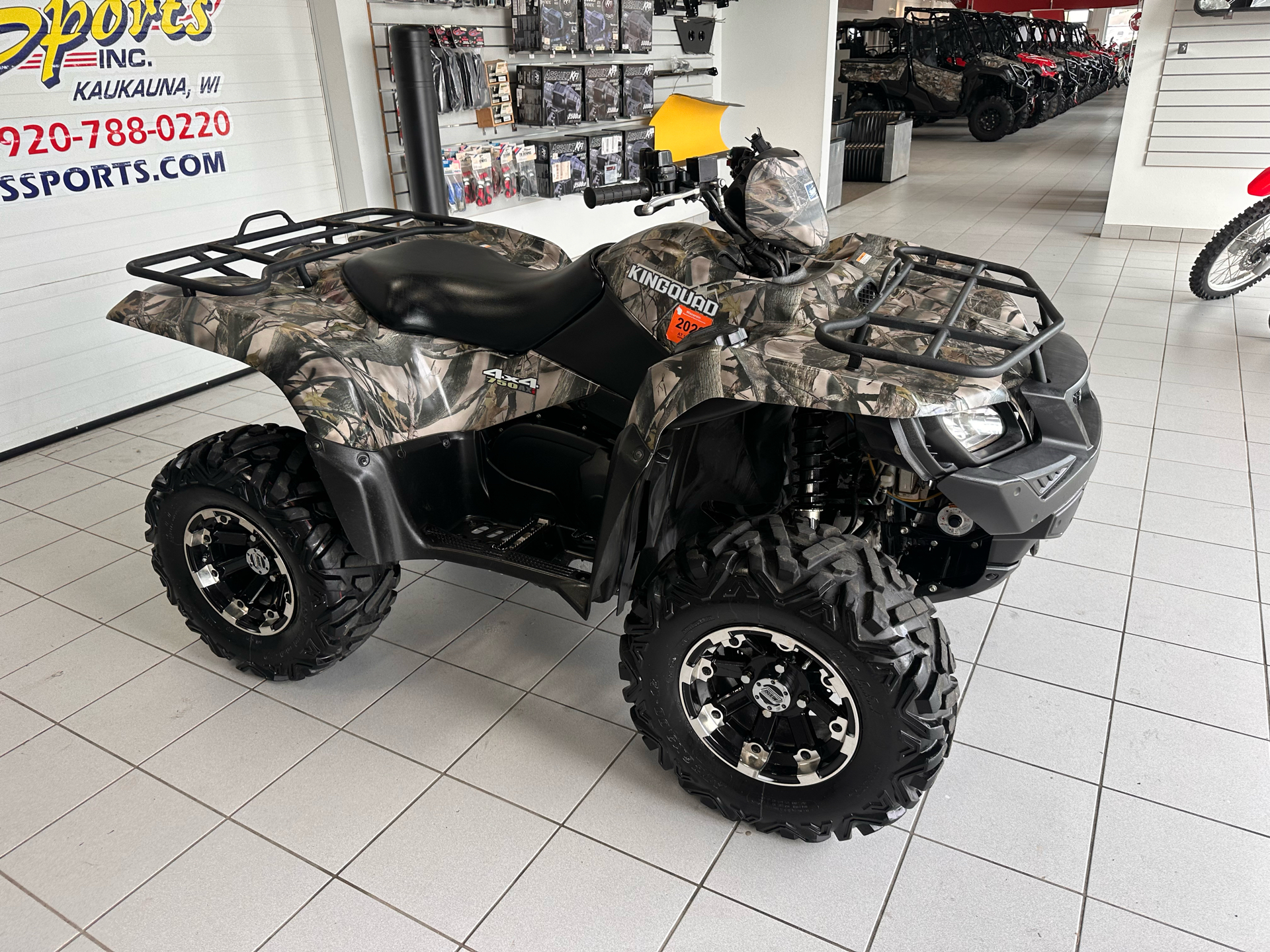

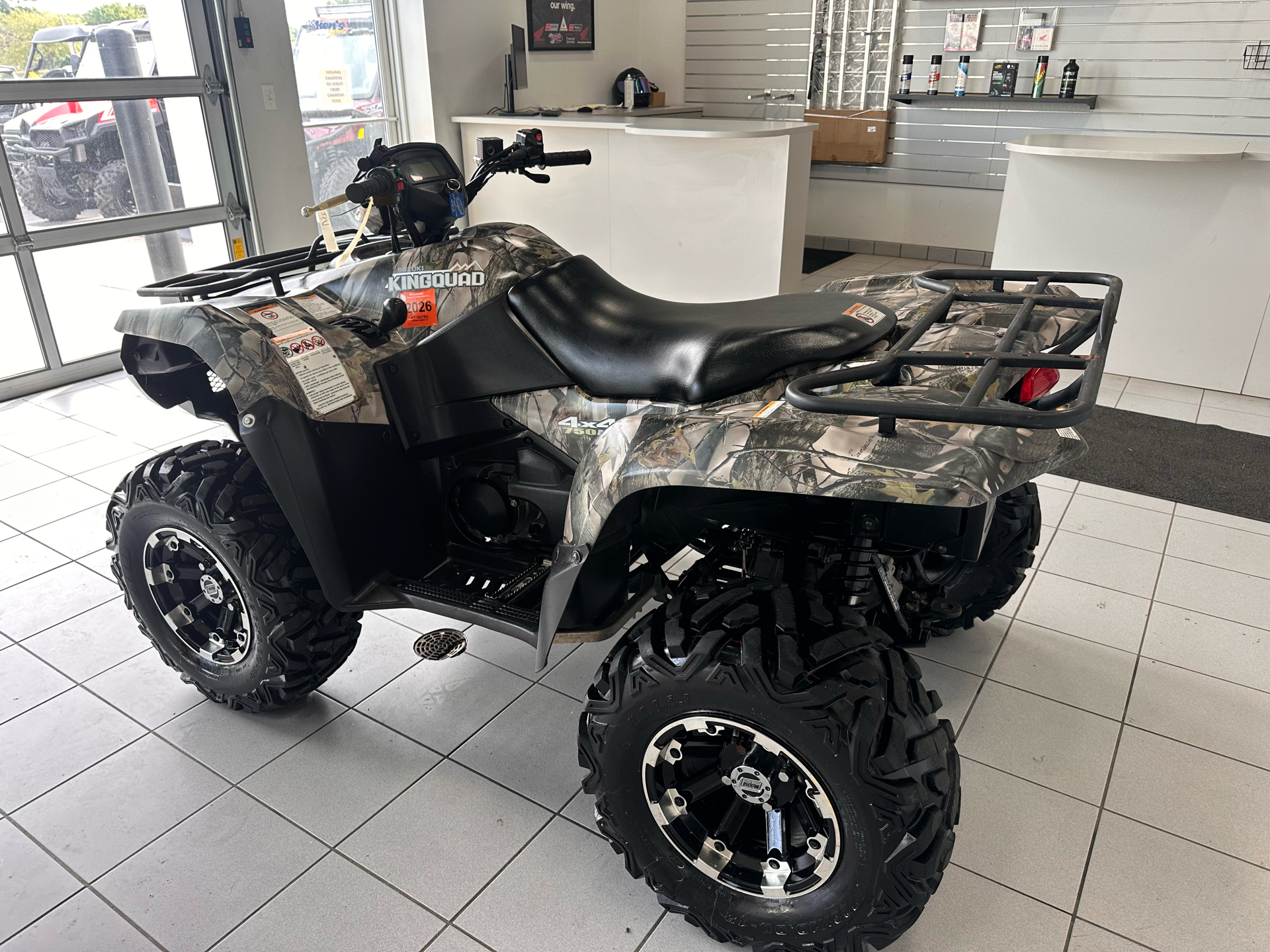

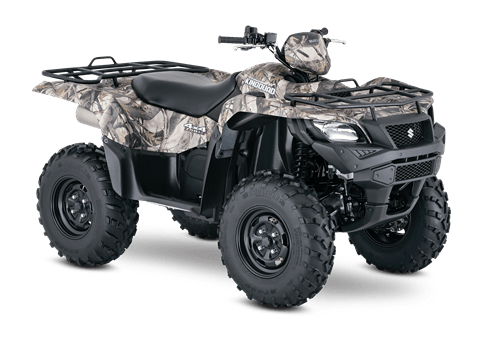

• A specialized version of the King Quad 750AXi that’s well suited for sportsman use with a True Timber XD3 camouflage package.

Special

• Minimum Operator Age: 16 Years Old.

Transmission Features

• The KingQuad 750AXi comes with a QuadMatic™ CVT-type automatic transmission designed for maximum versatility and convenience with a fender-mounted gate-type shifter operation for high/low range and reverse selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during steep descents.
• A compact torque-sensing limited-slip front differential offers more powerful traction plus a light steering effort. A differential-lock system provides serious four-wheel-drive traction.

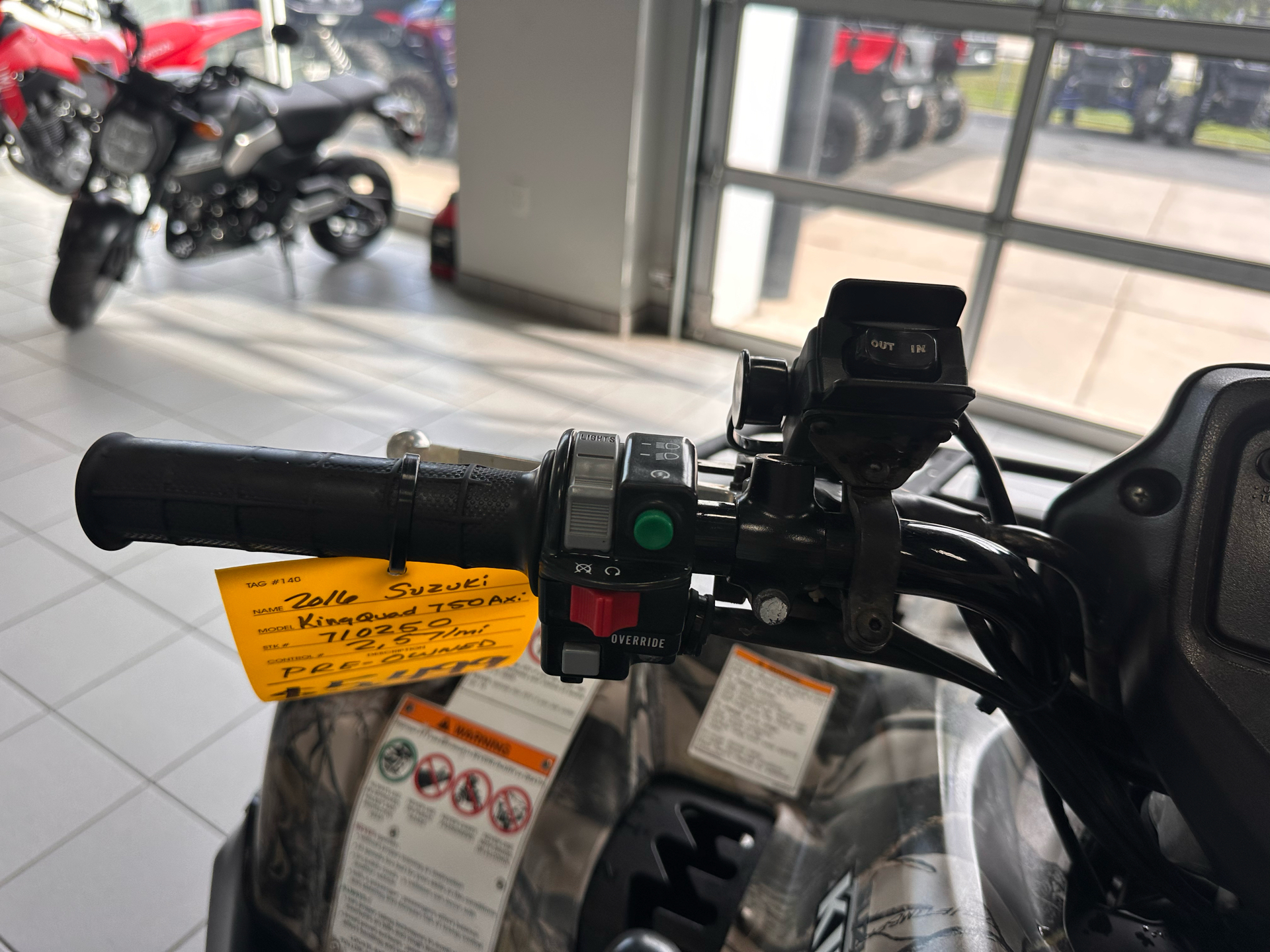

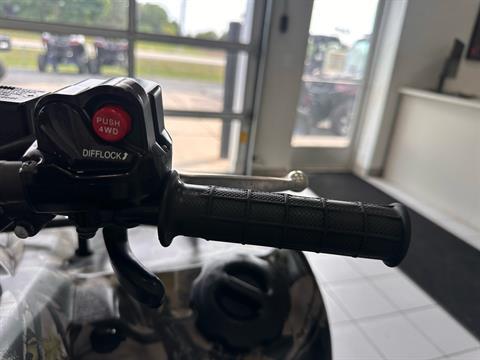

• Convenient handlebar-mounted push-button controls allow the rider to easily select between 2WD, 4WD and differential-lock 4WD to get the right setting for any traction condition.

Utility / Convenience Features

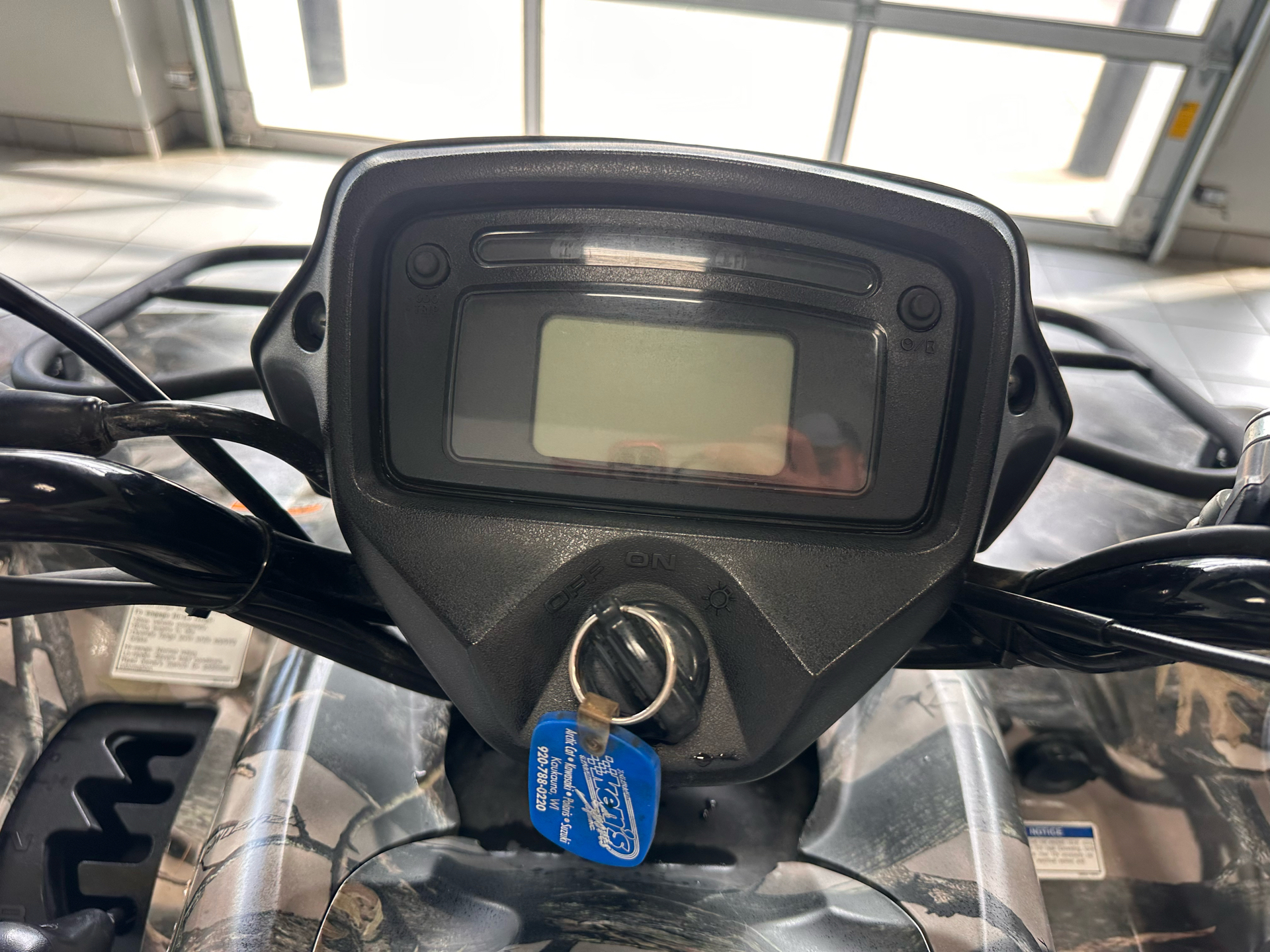

• Easy-to-read LCD instrument display – includes speedometer (mile/km selectable), odometer, twin-trip meters, hour meter, clock, fuel gauge, drive range.
• Distinctively styled 30W multi-reflector halogen headlights are mounted in the front fender and an additional 40W multi-reflector, handlebar-mounted auxiliary light puts additional illumination where you aim the handlebars. A compact 5/21W tail light and brake light bring high visibility to the back of the ATV.
• A high output three-phase charging system and large 18-amp maintenance-free battery provides extra power for easy electric starting and accessory use.
• The KingQuad 750AXi comes with a large 4.6 gallon (17.5 L) fuel tank, positioned for a low center-of-gravity. It includes a vacuum-operated petcock, ratchet-style fuel cap and convenient bar-type fuel gauge.
• A large 2.8 liter water resistant front storage compartment on the right front fender includes an easy access screw-on cap.
• The KingQuad 750AXi comes with rugged steel-tube racks with wrinkle paint finish for increased durability and scratch resistance.
• A wide array of Suzuki Genuine Accessories are available for the KingQuad 750AXi, including winches, utility windshield, front and rear bumpers, snow plow, aluminum skid pans, rack extensions, utility box and much more.

Warranty

• Standard - 12-month, unlimited mileage, limited warranty
• Extended - Extensions available through Suzuki Extended Protection (SEP)
